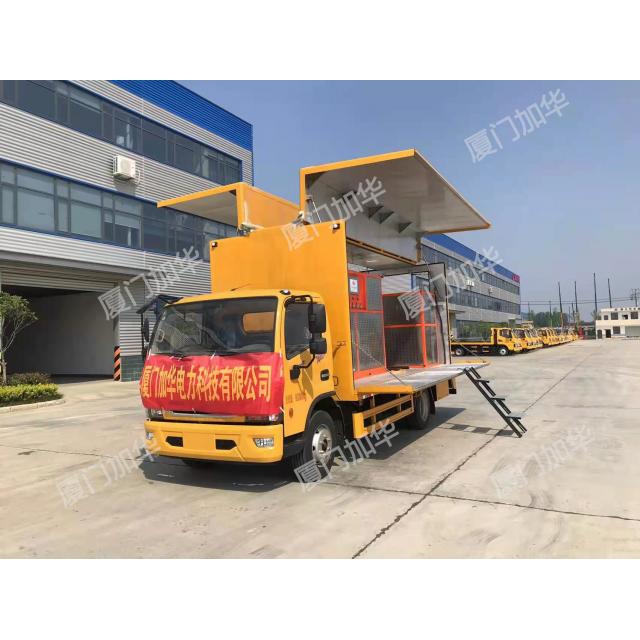

JHHS-80Z Vehicle-mounted SF6 gas handling system
Integrate high-performance SF6 vacuum recovery inflatable products into box trucks
Fully adapt to the power maintenance and installation requirements of on-site users, and take the rate and quality of vacuuming, recovery, inflation, and purification treatment as the primary goal of design and manufacturing
Applied to SF6 gas recovery, purification and recharge operations in GIS and GIL installation and maintenance of 110KV-500KV and above
Vacuum system | 250 m3/h two-stage vacuum unit with exhaust filter, final vacuum < 10pa |
Recovery system | SF6 gas professional oil-free high-power self-cooling air-cooled compressor 60m³/h (50Hz, 50 bar) |
Negative pressure recovery system | SF6 negative pressure recovery oil-free screw pump 50m³/h, final vacuum < 1 mbar) |
Refrigeration liquefaction system | using environmentally friendly refrigerant, refrigeration unit 36m³/h, liquefaction capacity 350kg/h |
Liquid filling system | SF6 special liquid filling machine 5m³/h, filling capacity 50kg/5-8min |
Maximum gas storage pressure | 50bar (5Mpa) |
Recovery gas pressure | initial pressure ≤ 10bar (1Mpa) final pressure ≤ 1mbar |
